VENTAX
Industrial Air Quality Meter
Ministry of Environment's first grade certification/ KC Certified

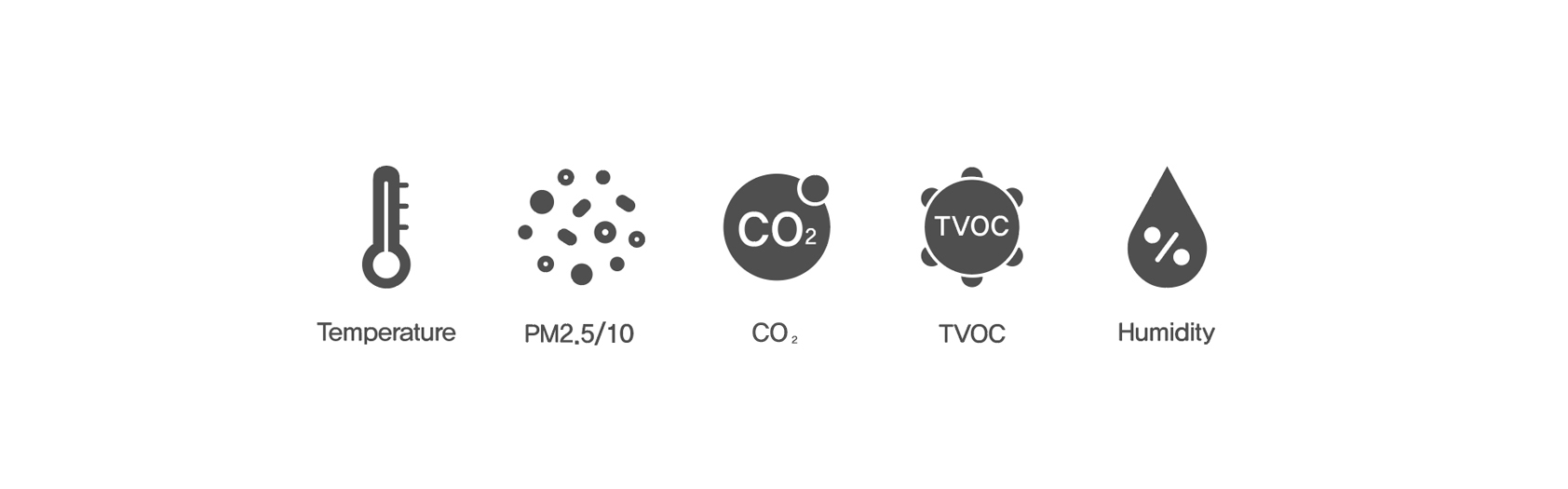

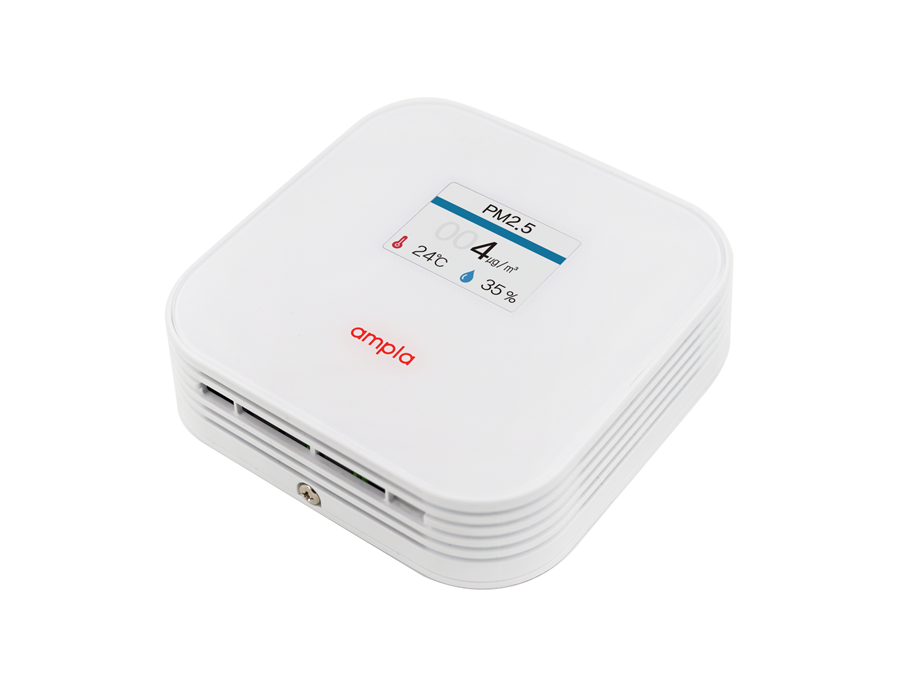

VENTAX is a high-precision air quality meter. With built-in fine dust, carbon dioxide, total volatile organic compounds, temperature, and humidity sensors. Mark each sensor measurement in real time on the indicator. It is a product that can check measurement data in conjunction with the server system through communication output.

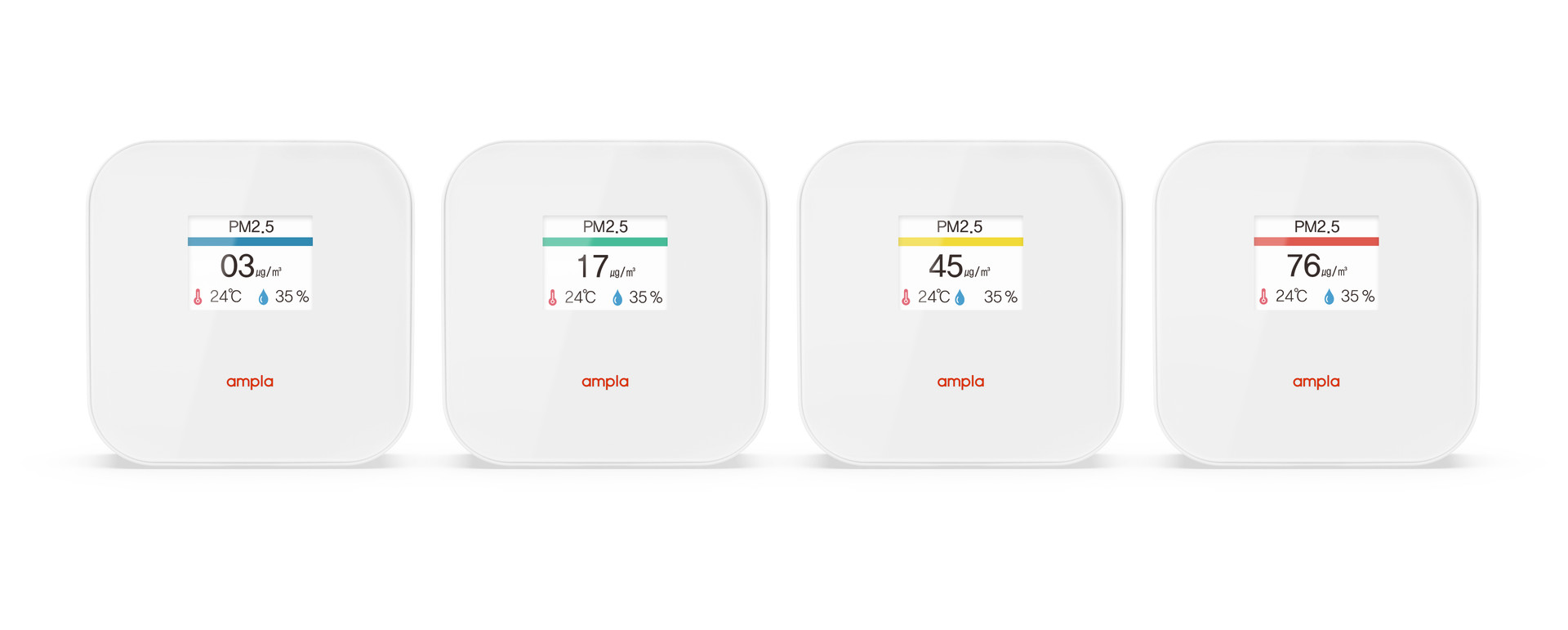

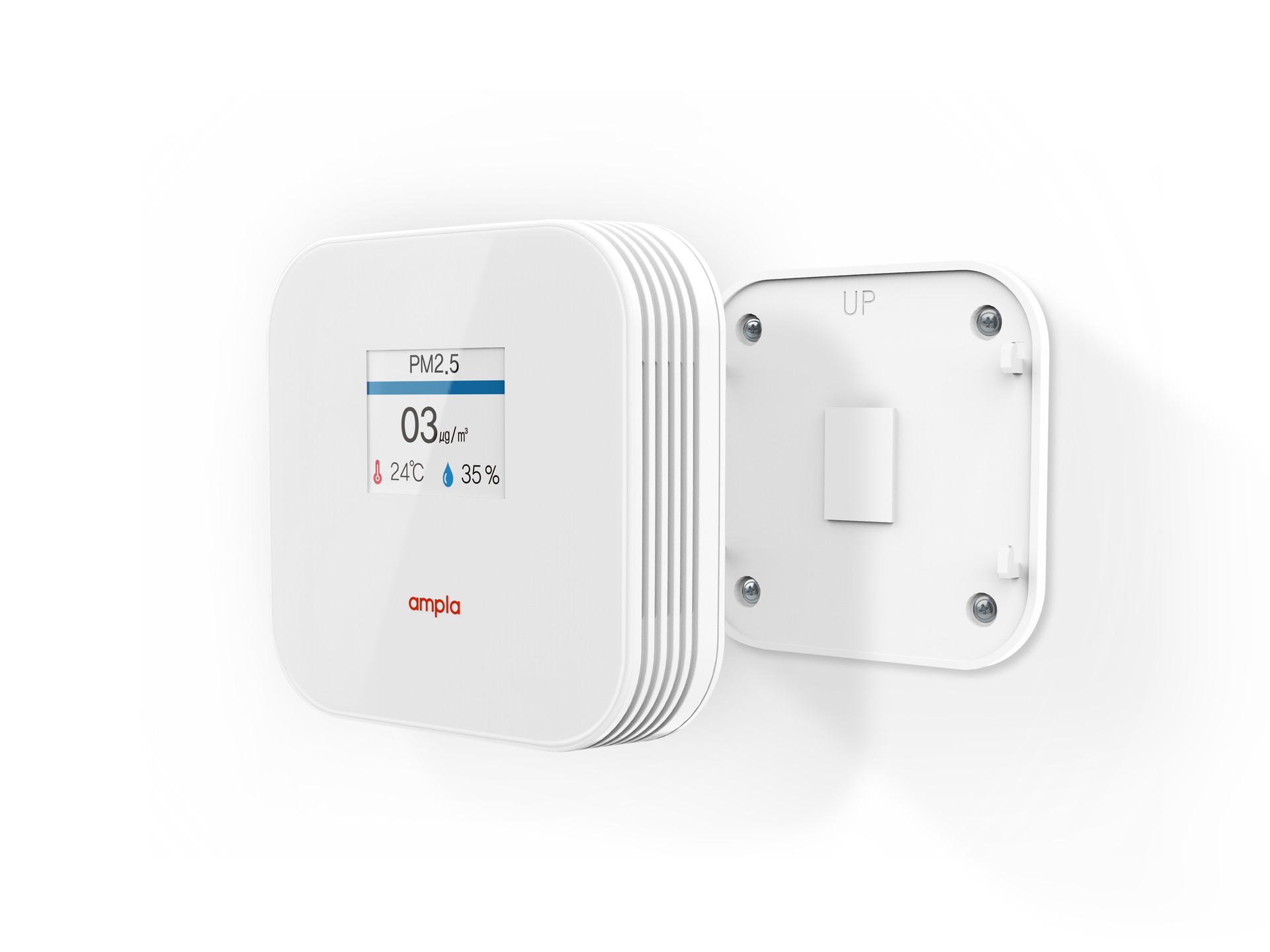

Display with high visibility
Data reliability

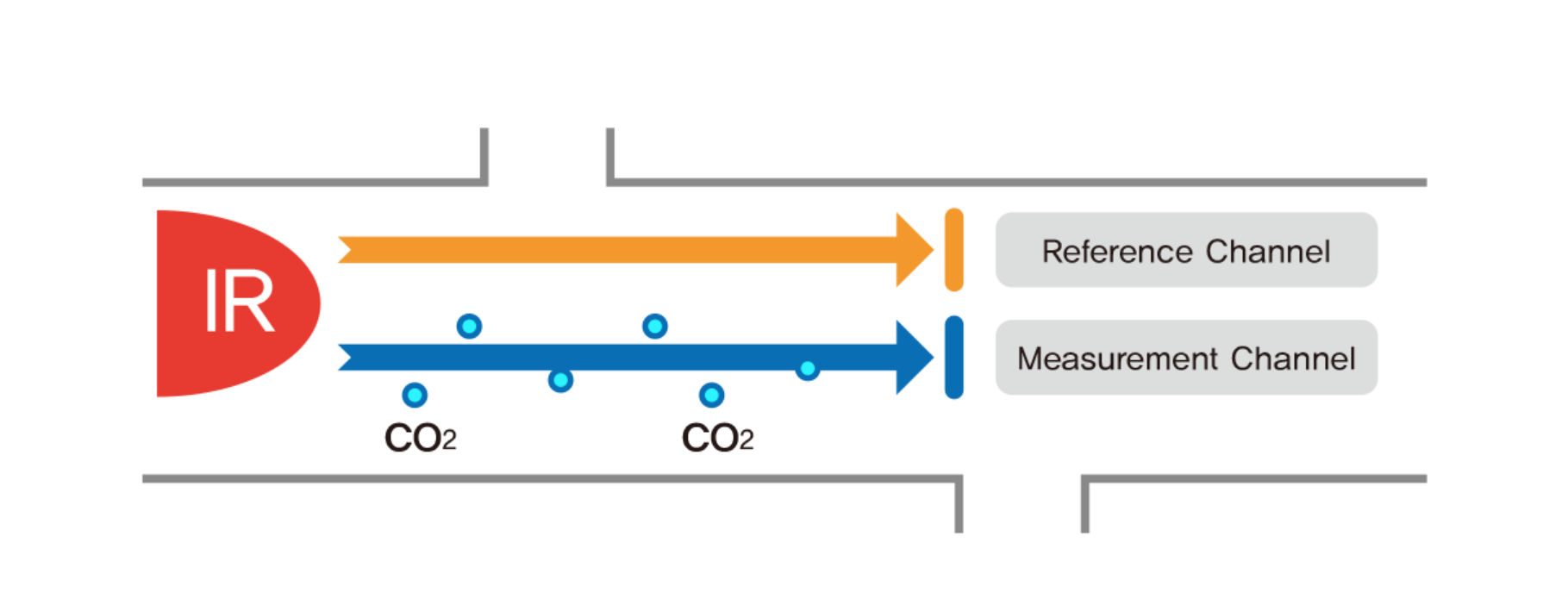

The dual channel ndir method has a reference sensor that automatically corrects
the measured value, so it is excellent in accuracy even if measured for a long time.
Functional stability

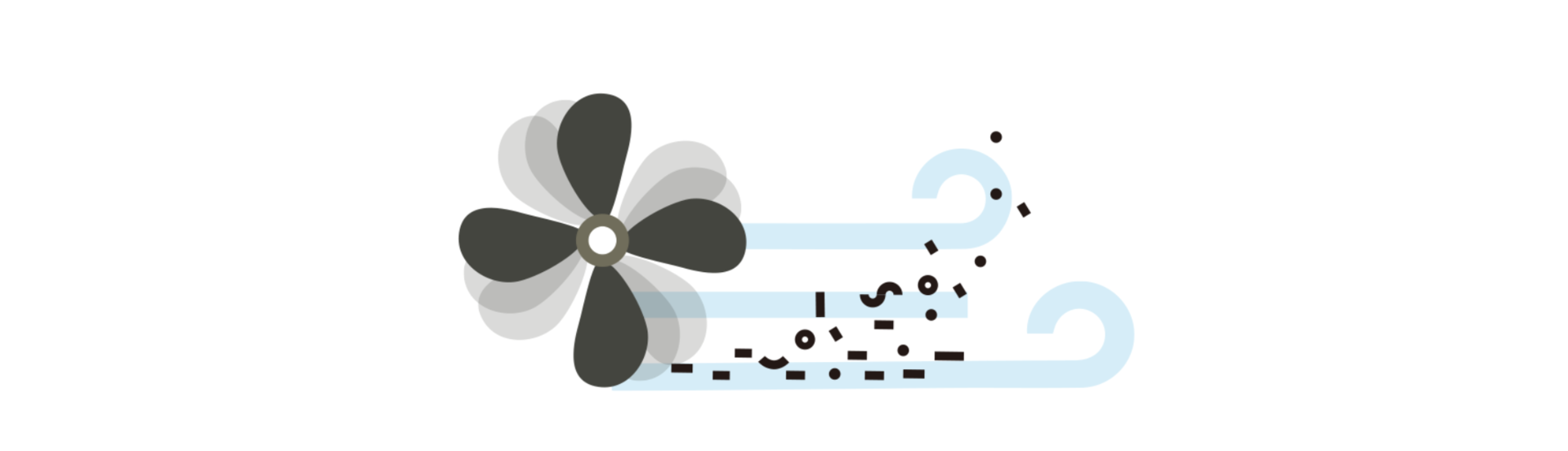

It is possible to remove dust accumulated inside the sensor
through the Auto Cleaning function, which operates once a week.
Data reliability
▣ Specification
| Product | Industrial air quality |
|---|---|
| Model | VENTAX |
| Measurement Range(built in sensor) | PM1.0/PM2.5/PM4.0/PM10 : 0 ~ 1,000 ㎍/㎥ CO₂ : 0 ~ 10,000 ppm TVOC : 0 ~ 6,000 ppb CO₂: 0 ~ 60,000 ppm Temperature : -40 ~ 125 ℃ Humidity : 0 ~ 100 %RH |
| Communication | Wire : RS-485(Modbus RTU) Wireless : LoRa(Optional) |
| Display | 2.0" TFT Display / NO Display |
| Power | DC 24V / 0.1A DC 9~33V Power |
| Battery | Li-polymer @ 1500mAh/3.7V |
| Operating Temp | -20 ~ 60 ℃ |
| Storage Temp | -30 ~ 70 ℃ |
| Size | 115mm X 115mm X 30mm |
| Weight | 215g |
| Certified | KC |

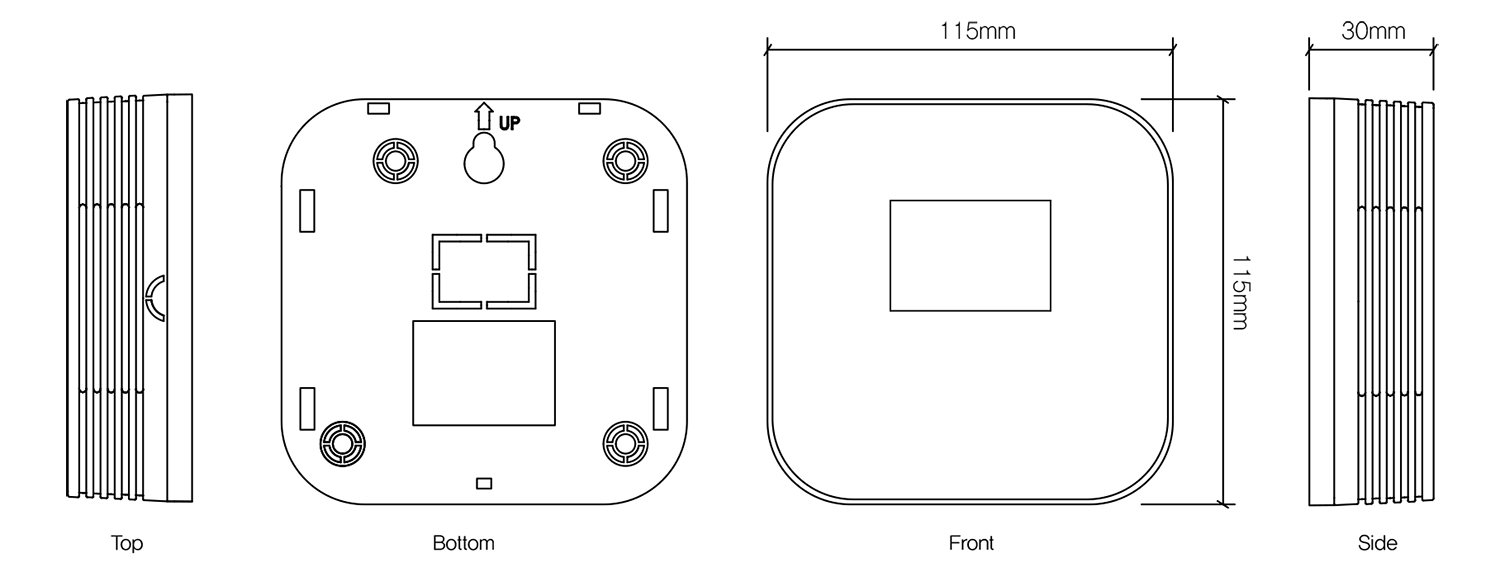

▣ Dimension
